The Moonbay Safety Panel System is designed for elevated flooring applications that require secure tile placement, easy access,

and efficient maintenance. This guide outlines the step-by-step installation and inspection process to ensure a secure and clean

surface without the need to break any paving tiles.

Installation Steps

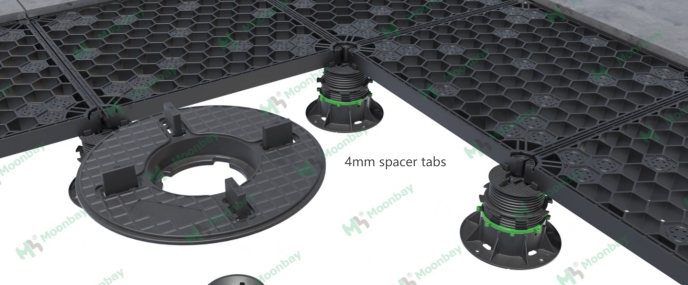

Prepare the Pedestal System

   – Use Moonbay pedestal heads with 4mm spacer tabs for correct tile spacing.

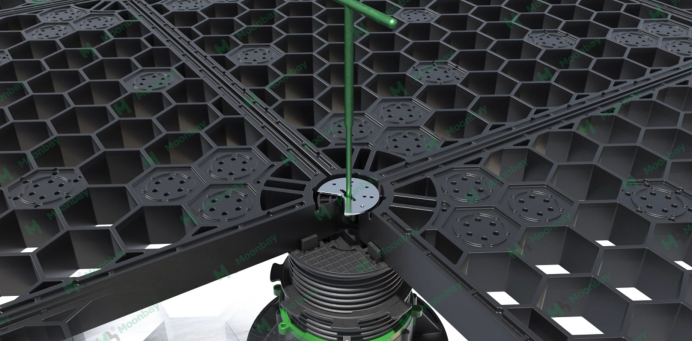

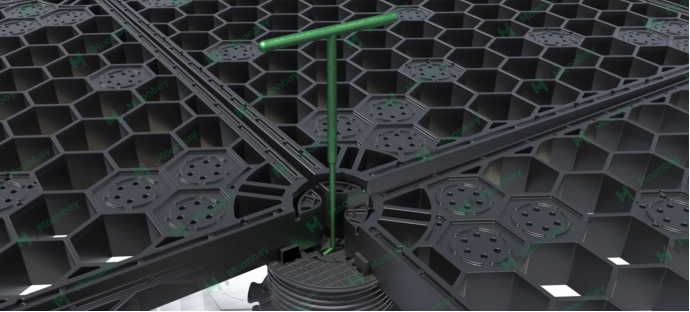

Level the Surface

   – Insert the adjustment key into the head slot to fine-tune the height and ensure a level platform.

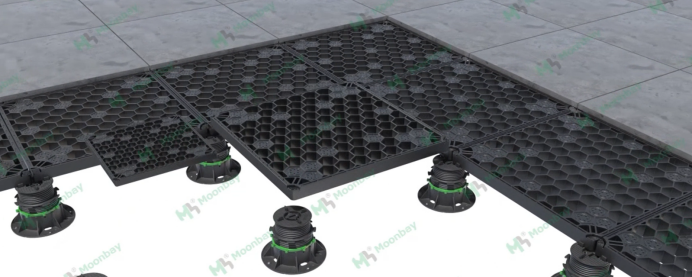

Place the Safety Panel

   – Position the Moonbay Safety Panel on the pedestal. The panel is pre-equipped with three adhesive tracks (perimeter, corner,

and auxiliary) for added grip and stability.

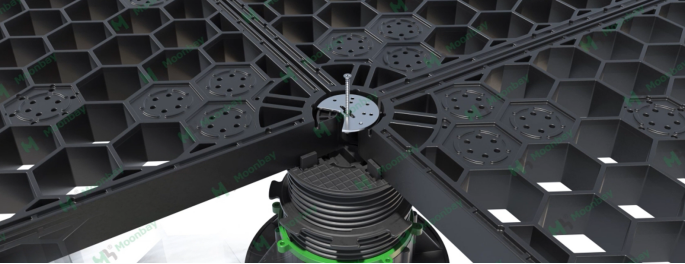

Apply the Invisible Lock Disk

   – Place the stainless steel (SS) lock disk over the panel.

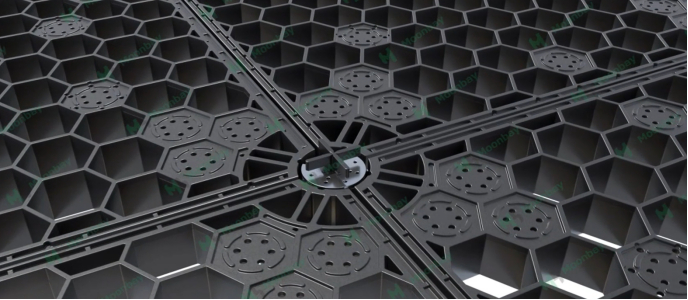

   – Rotate the disk to cover all four corners of the Safety Panel.

Secure the Safety Panel

   – Screw lock the panel through the center of the lock disk.

   – Insert the dedicated spacer tab into the middle hole of the disk to finalize positioning.

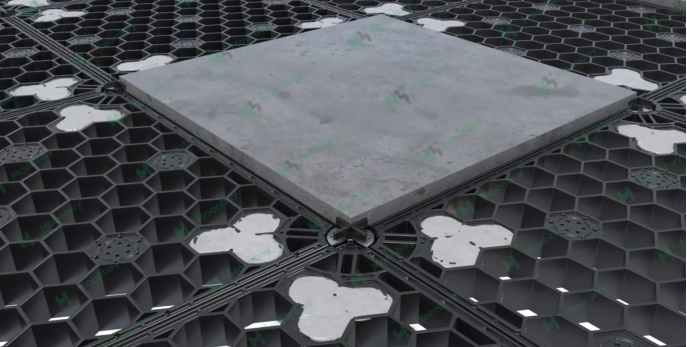

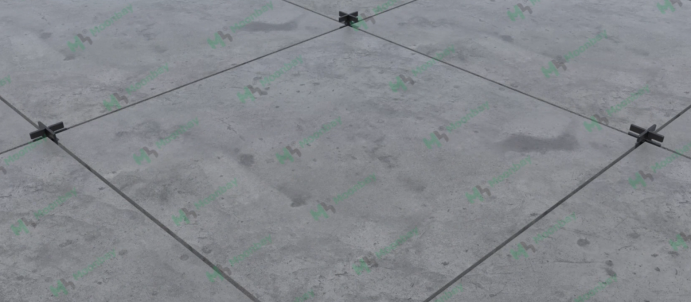

Install the Paving Tiles

   – Place each paving tile one by one, ensuring tight alignment around the secured safety panel.

Cleaning and Inspection Steps

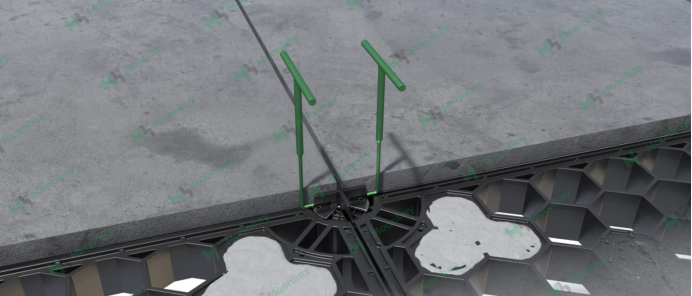

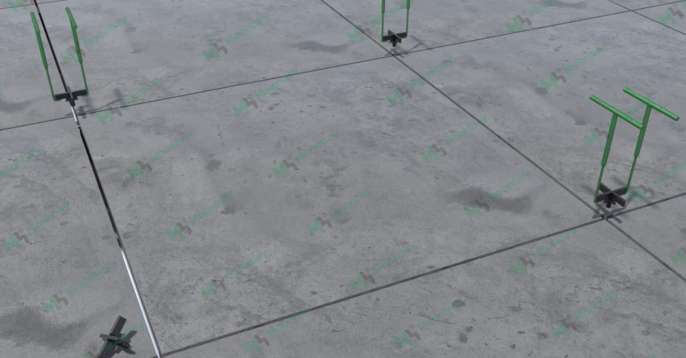

Remove Spacer Tabs

   – Use Moonbay’s customized tool to hook and lift out the middle spacer tab.

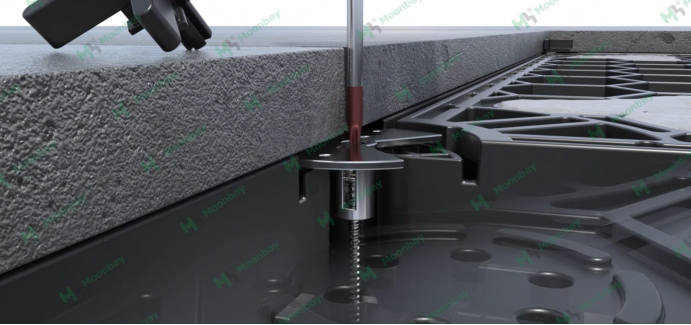

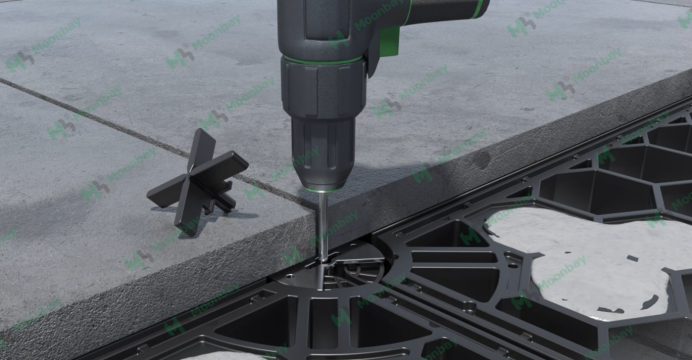

Loosen Screws

   – Unscrew the center of the SS lock disk to begin releasing the panel.

Rotate and Release Corners

   – Rotate the lock disk to uncover the four panel corners.

   – Loosen screws at the remaining three corners and rotate the disk to release them.

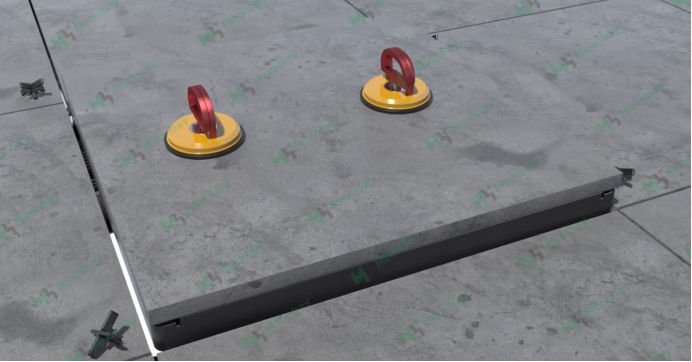

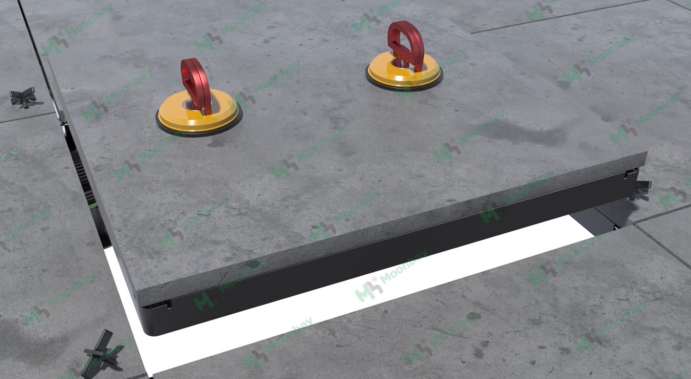

Lift the Safety Panel and Tile

   – Carefully lift the paving tile and safety panel together without damage.

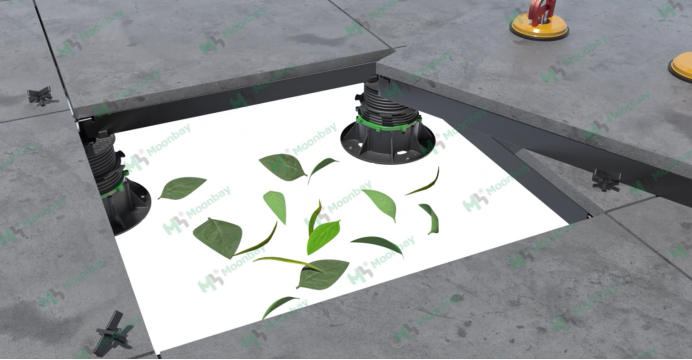

Clean the Subfloor Area

   – Remove trash or debris underneath the raised floor.

Reassemble the System

   – Place the safety panel and tile back in their original positions.

   – Rotate the SS lock disk to cover all corners again.

   – Screw lock the disk and reinsert the middle spacer tab.

✅ Key Benefits

No need to break or damage any tile during inspection

Fast and secure locking with invisible stainless steel disk

Quick access to the subfloor for cleaning and maintenance

Fully compatible with Moonbay pedestal systems

Clean finish with integrated spacer tab system

This user-friendly and secure installation method makes the Moonbay Safety Panel an ideal solution for commercial terraces, rooftop

gardens, and other raised flooring applications requiring routine inspection and easy access.
