Home > PRODUCT >>  Adjustable pedestal

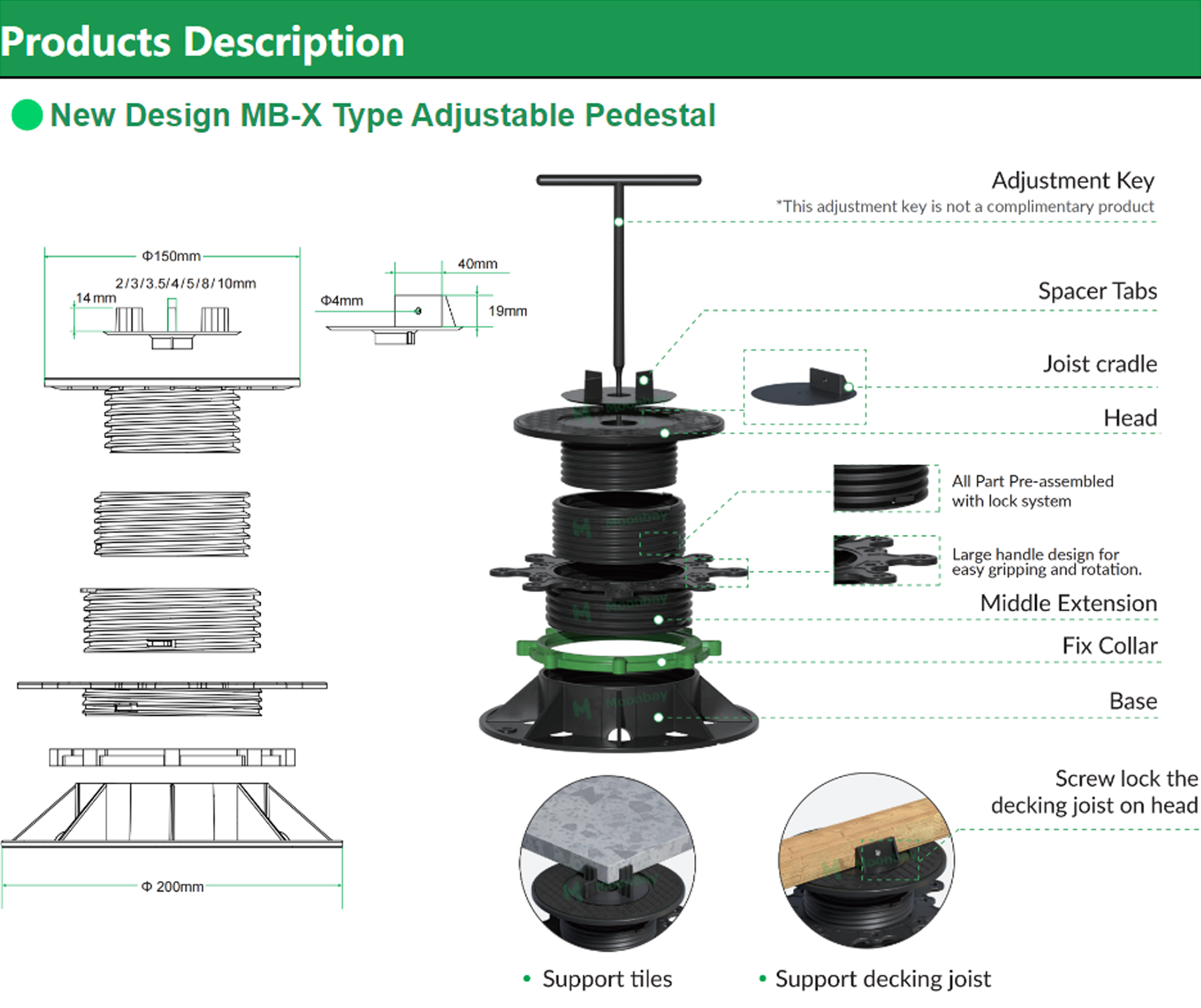

MB-X type plastic adjustable pedestal

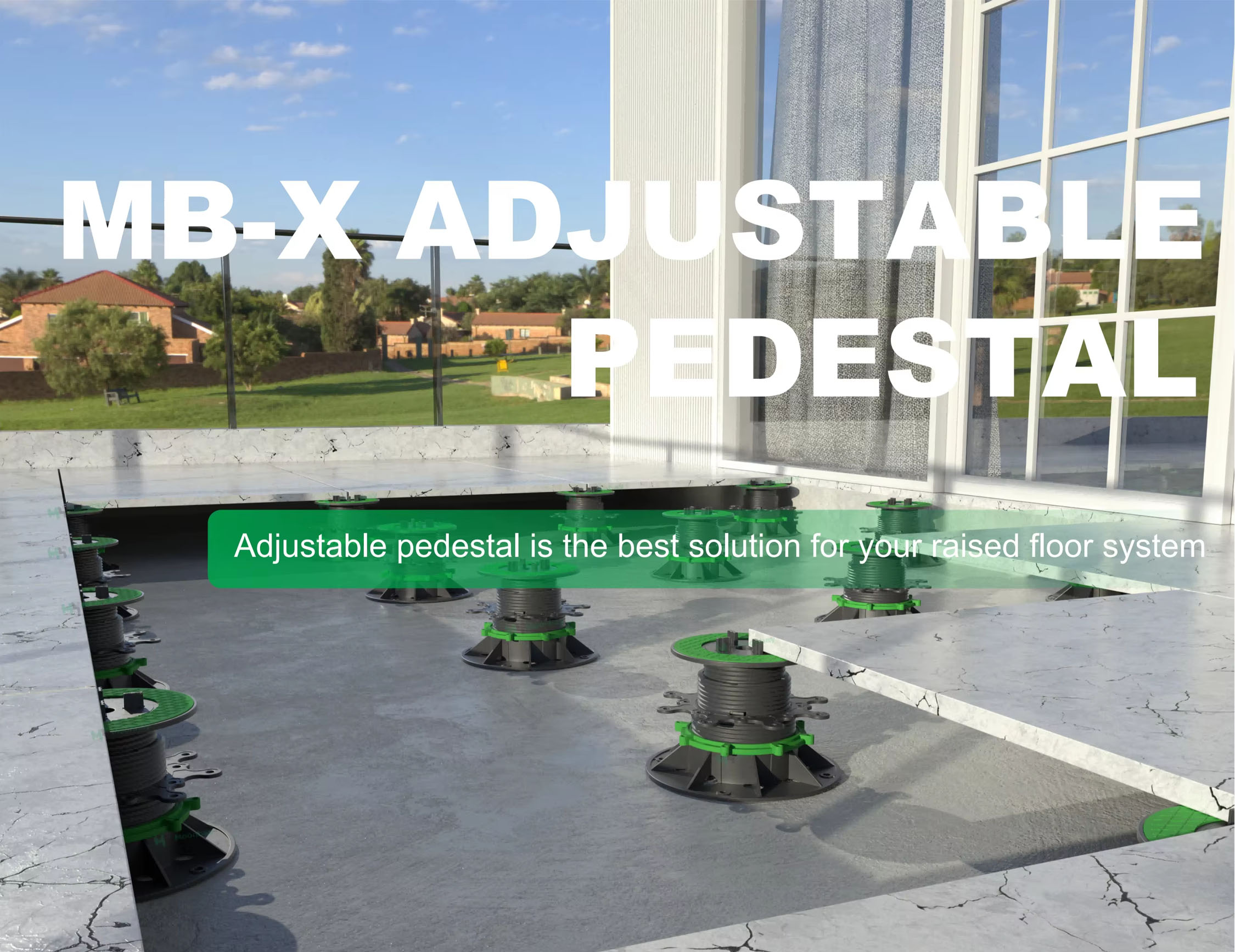

Adjustable pedestal is the best solution for your raised floor system, both for decking and paving tiles.  Among all other pedestals, The MB-X type have many advantages to make your job easier and  efficient.

Inquire


  • E-mail:png


Product parameters

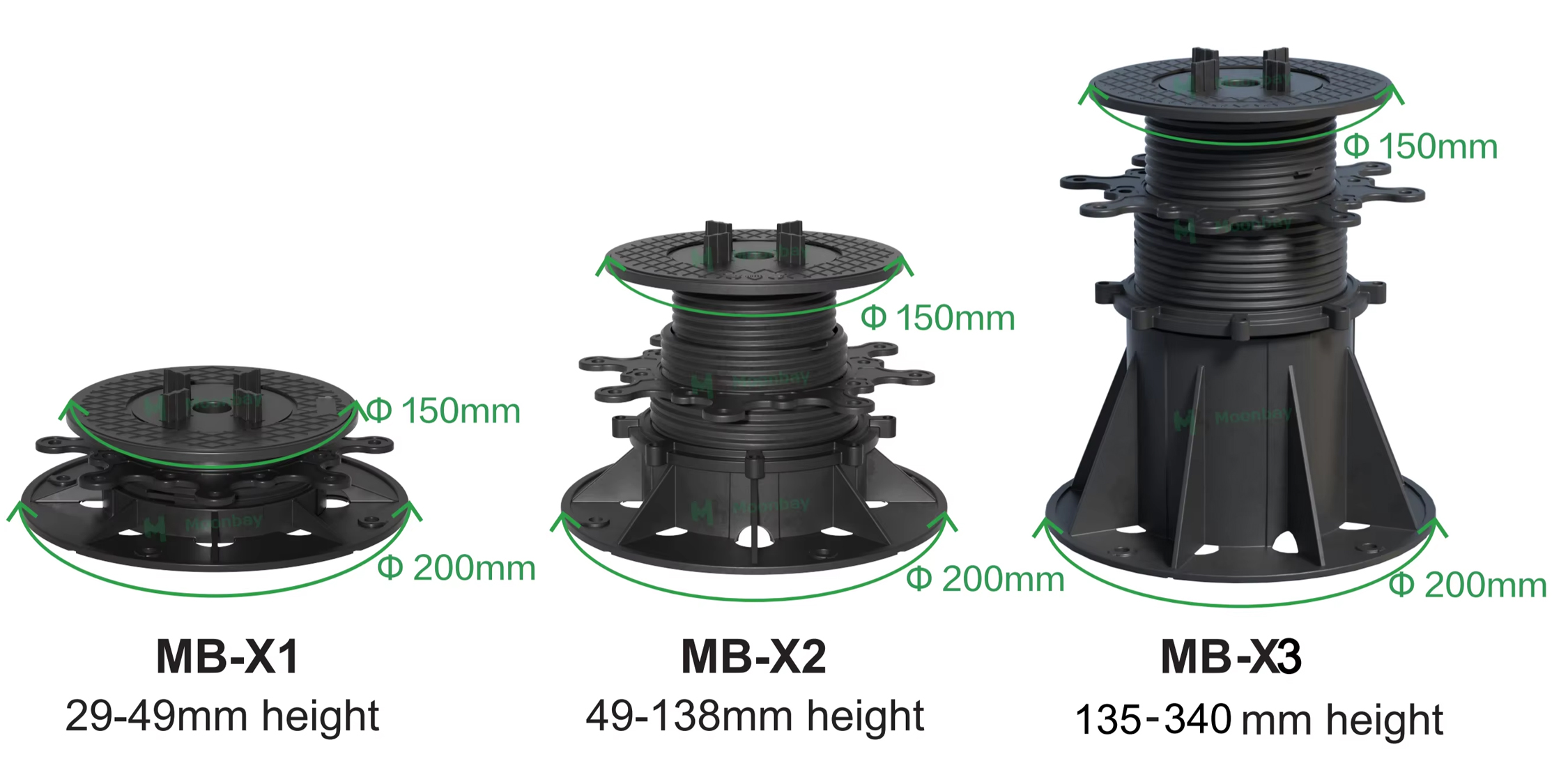

  • Wide Adjustment height range, MB-X1: 29-49mm;  MB-X2: 49-138mm;  other competitors pedestals normally need 4-5 skus to match this height range.

  • All part fully assembled with lock system, save labor and never unscrew for all part.

  • Adjust height from the top by adjustment key, no need repeat lifting and laying the tiles.

  • Soft rubber injected on head, no need extra head rubber, save labor and stock SKU.

  • Extension pad can be easily installed on head of pedestal, each pad give 45mm extra height,and they are stackable, e.g. MB-X2 add 2 pcs extension pads can reach maximum 228mm height.

product details





Alibaba SKA supplier

SGS test report and CE certificate

Distributors offer onsite service


12800 square meters factory


Over 50 professional engineers


MOONBAY ADJUSTABLE PEDESTAL

Hot sell MB-X  adjustable pedestal

Adjustable pedestal is the best solution for your raised floor system, both for decking and paving tiles.  Among all other pedestals, The MB-X type have many advantages to make your job easier and  efficient.



Hot sell MB-T adjustable pedestal

MB-T adjustable pedestal with 1.3 tons high loading capacity, fit all kinds of installation situation, such as ceramic tile, stone tile, granite tile, wood decking, wpc decking etc.



ACCESSORY OPTION


Base slope corrector

Rotating the upper disc to compensate 0~5% slope. Assembled under the base of the MB-T adjustable pedestals


No smell base pad

No smell,heathy,eco-friendlyAnti-slip, absorb noise,protect water membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia 200mm)


Flat base rubber pad

Anti-slip, absorb noise, protect water membrane. Assemble under the base of pedestal


15mm/40mm Top Extension Pad

To add 15mm/40mm higher by stack onto pedestal top. Stackable (4 max)on pedestal top.


Safety connect rod

To connect pedestals for excess height installations (over 800mm) or for installations requiring additional stability. Size option: short connect rod 340mm-500mm length; long connect rod: 500mm-750mm length


Wood Deck Connector

To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.40mm gap with

cross way (suitable
for beam size 20-40mm)

PROJECTS SHOW


Canada walter


Grosvenor Ambleside project


KakaoTalk project


Mock up-Romania


Oostem-New York


Oostem-New York


Bainbridge Island Waterfront Remodel-Seattle


Belgium high-sheed rail

MOONBAY PRODUCT PACKAGING




MOONBAY PRODUCT CERTIFICATE
